Universal Gcode Sender

A free and full featured gcode platform used for interfacing with advanced CNC controllers like GRBL , FluidNC, TinyG, g2core and Smoothieware. Universal Gcode Sender is a self-contained Java application which includes all external dependencies and can be used on most computers running Windows, MacOSX or Linux.

Language License Build Status GitHub Release Date


Features

  • Cross platform, can run on Windows, MacOSX, Linux, and Raspberry Pi
  • Configurable user interface
  • 3D Gcode Visualizer with color coded line segments and real time tool position feedback
  • Real time overrides
  • G-code editor
  • Designer editor (with laser engraver support)
  • Configuratble gcode optimization:
    • Remove comments
    • Truncate decimal precision to configurable amount
    • Convert arcs (G2/G3) to line segments
    • Remove whitespace
  • Support for Gamepads and Joysticks
  • Web pendant interface

Screenshots

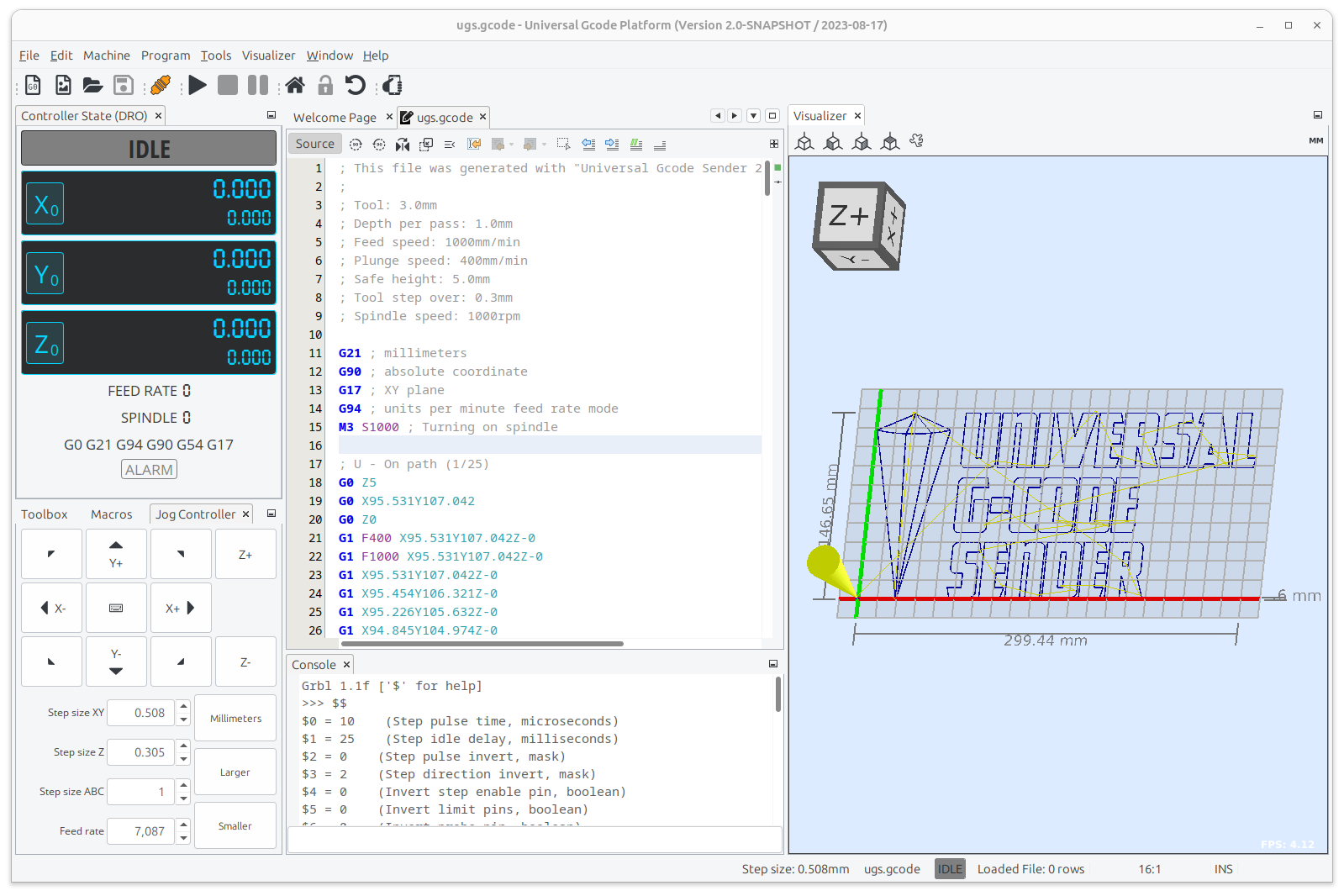

Fully modular GUI, reconfigure windows to suite your needs. Screenshot

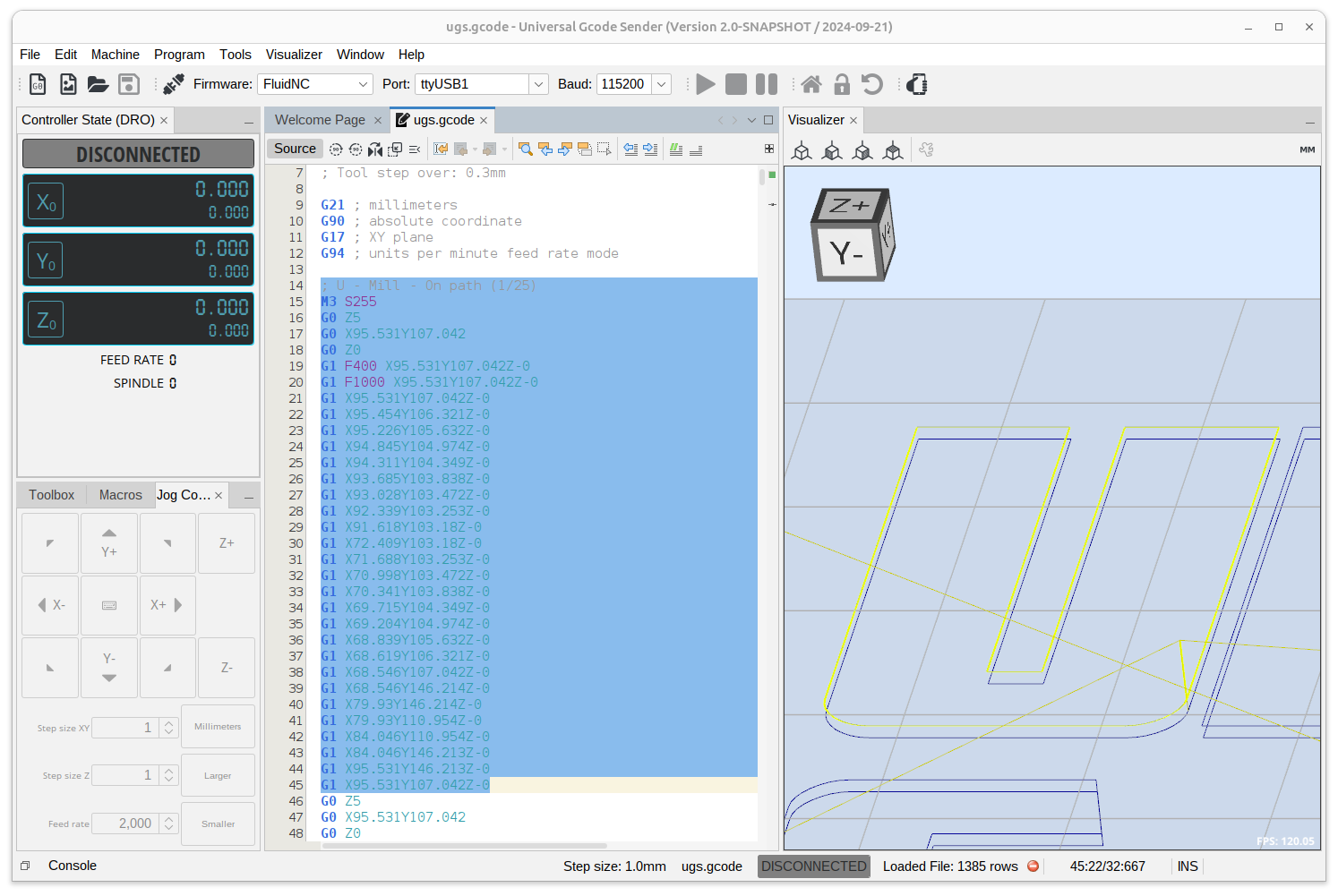

Built in gcode editor with line highlighter and syntax highlighting

Gcode editor

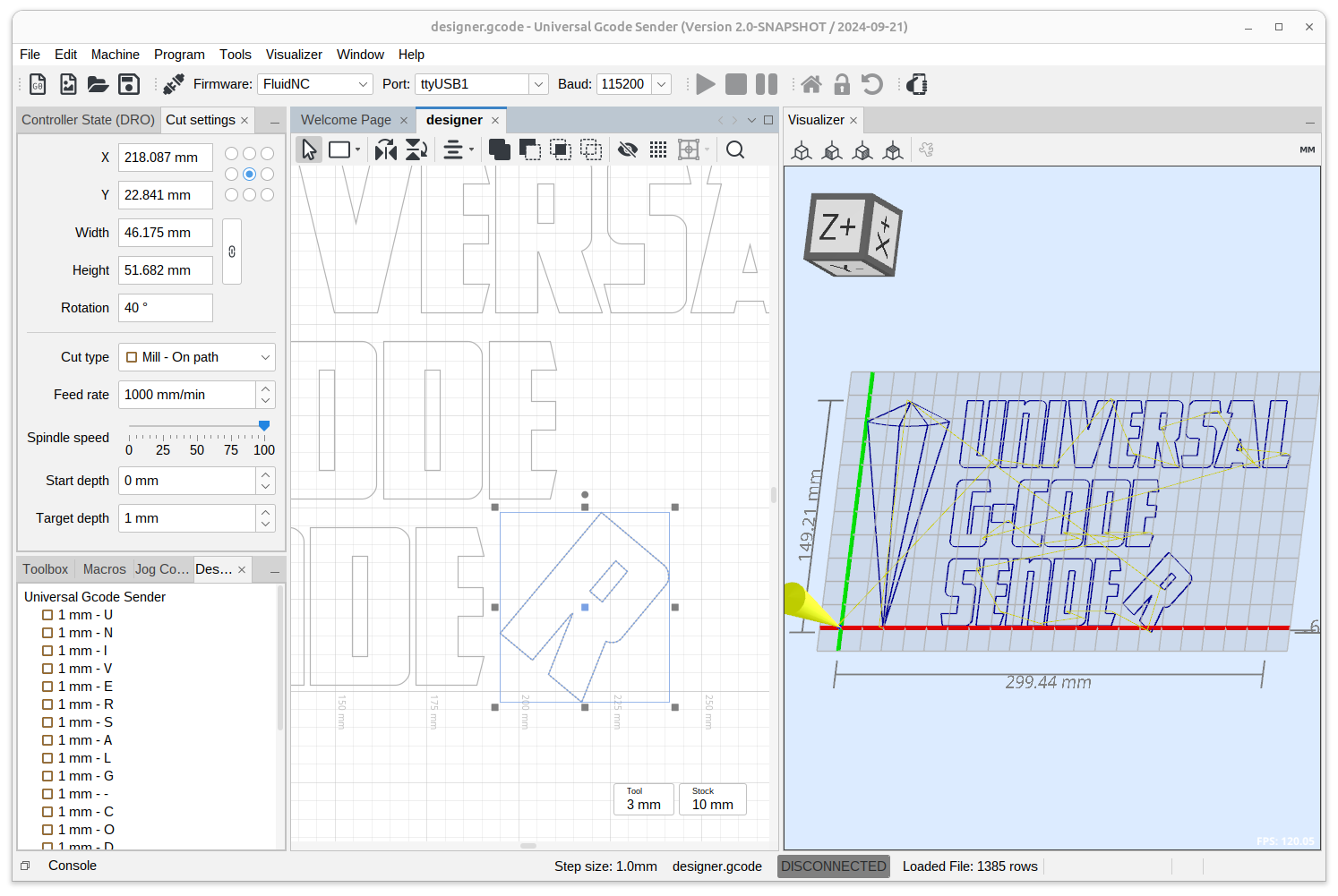

Built in designer with support for importing SVG/DXF/PNG/JPG

Designer tool

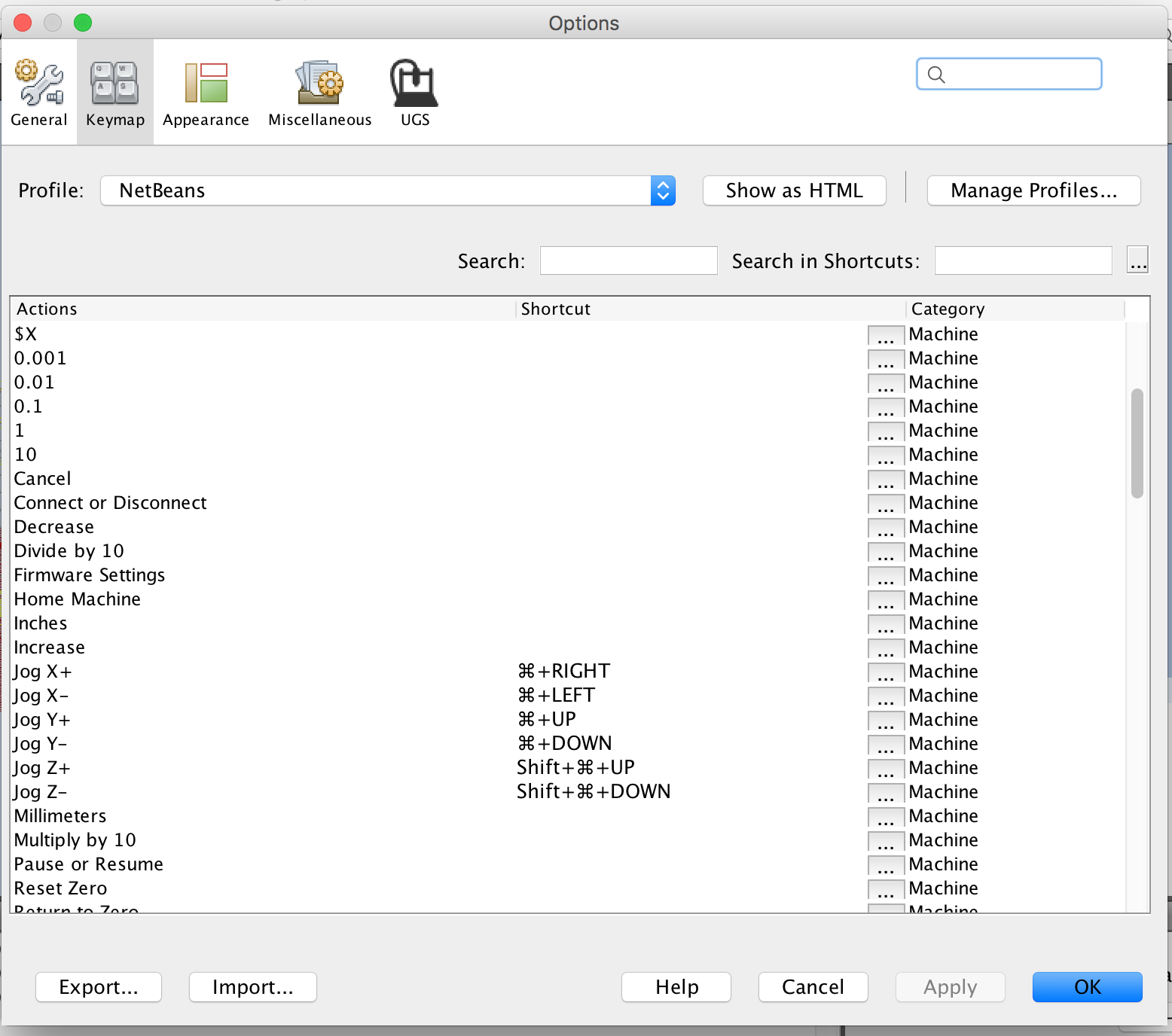

Customizable keybindings.

Key bindings

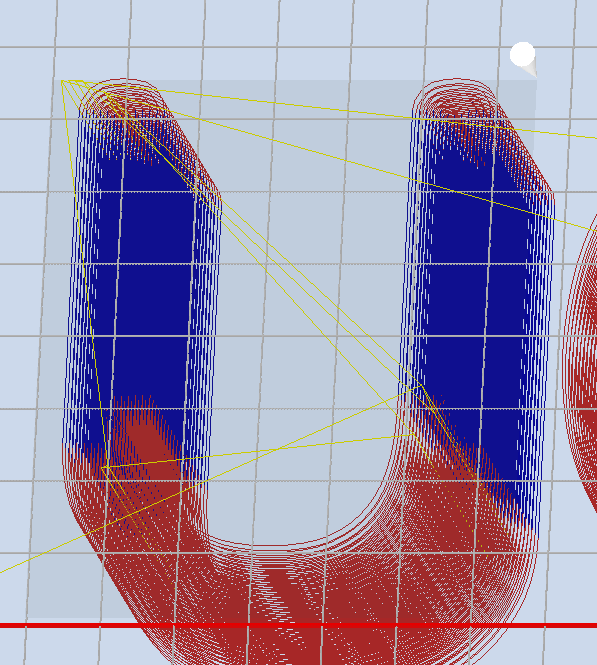

Zoom to selection with command and drag.

Zoom

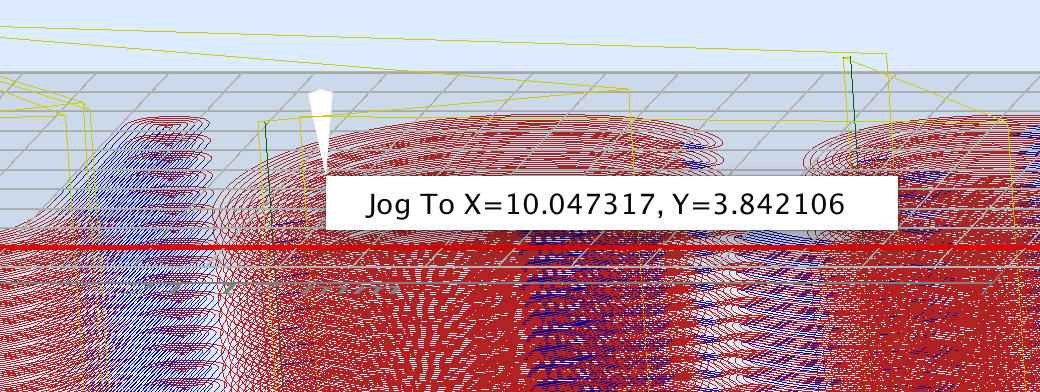

Right click in the visualizer to jog to a specific XY location.

Click to jog
